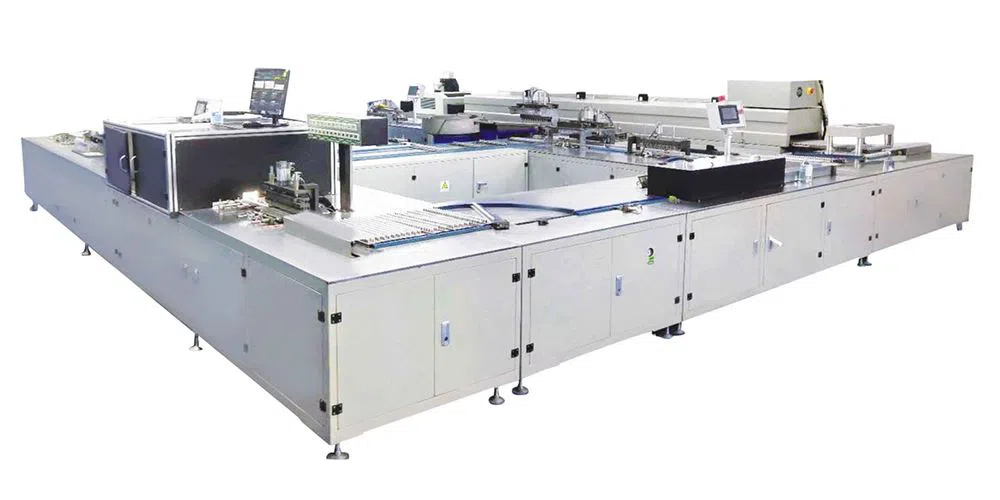

Connaught Pen And Needle Tip Assembly Machine
Equipment parameters
Production capacity | 20000-25000 pcs per hour |
Equipment power | 15Kw |
Gas consumption | 50 cubic per hour |
Rated pressure | >0.6 Mpa |
Equipment weight | About 12 tons |
Equipment size | 10m*7m |
Operators | 3-4persons |
Equipment Configuration
The device adopts the Keyence programming control system, and the panel is easy tooperate with the touch screen.
The servo motor coating mechanism is smooth and uniform. The detection system adopts the
Keyence CCD image from Japan, and the pneumatic configuration adopts the imported components.
Technological process
Needle hub loading→assemble needle cannula→gluing →oven drying →silicification→Jam detecting→needle burr detecting by CCD→small cap loading →unqualified product rejecting→Big cap loading→capping paper→flat pressing paper→side pressing paper→Discharging
