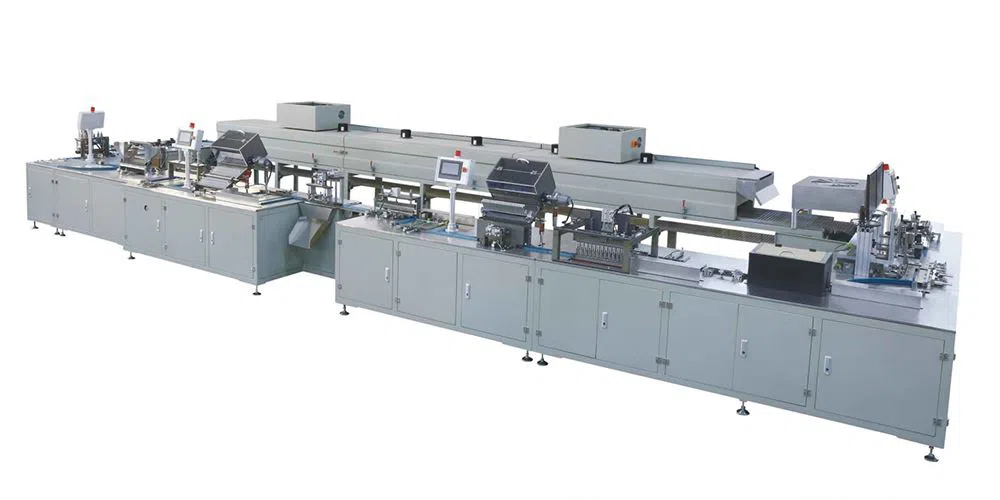

Single Blade Venous Needle Assembly Machine
Professional Quality Honesty And Pragmatism First-class Service
Equipment parameters
Output | 25,000 pieces per hour |
Gas consumption | 60 cubic meters per hour |
Whole machine power | 18Kw |
Rated pressure | >0.6 MPa |
Equipment size | 11m*3.5m |
Equipment weight | About 6 tons |
Operators | 2-3 persons |
Equipment Configuration
The device adopts the Keyence programming control system, and the panel is easy to operate with the touch screen.The servo motor coating mechanism is smooth and uniform.The detection system adopts the Keyence CCD imagefrom Japan, and the pneumatic configuration adopts the imported components.
Technological process
Assembly blade →assembly needle tube → glue coating (epoxy resin glue)→ twirl the needle 1→ twirl the needle 2→drying → jam detection→CCD detection of needle tip burr, inverted needle→ silicification → waste shaving→put on protectivecap→press protective cap→laying-off
