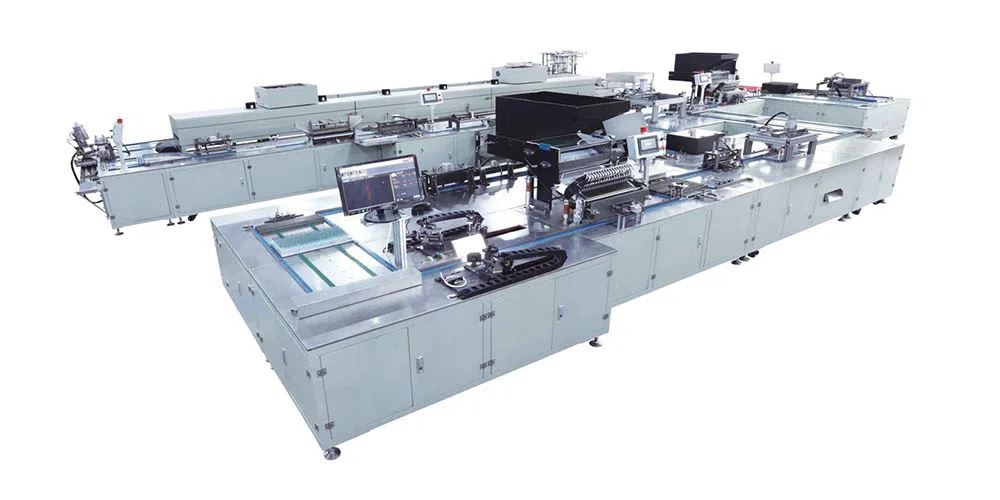

Pen-pole Blood collecting Needle Assembly Machine
Equipment parameters
Output | 12,000 pcs per hour |
Gas consumption | 60 cubic per hour |
Whole machine power | 18KW |
Rated pressure | >0.6MPa |
Area covered | 11m*6m |
Equipment weight | About 9 tons |
Operators | 3-4 persons |
Equipment Configuration
The device adopts the Keyence programming control system, and the panel is easy to operatewith the touch screen.
The servo motor coating mechanism is smooth and uniform. The detection system adopts the
Keyence CCD image from Japan, and the pneumatic configuration adopts the imported components.
Technological process
Needle seat→Assembly needle tube→-Glue-coating→Drying→Checking-CCD detecting burr→silica→shaving waste→upper sheath→pressure sheath→turning tooling→silicide→sleeve→Pressing sleeve→Upper short cap→Pressure cap→Unloading
