The core components, for example, mechanical body, controllable system, servo motor, drive and big loading ball screw.so our electric injection molding machine can be provided the strong guarantee for forming your product

Send Inquiry

Share:

Product Details


Injection Molding Machines

1) Precision hydraulic synchronous template adjusting system.
2) Optimal design of high-strength, precision clamping unit.
3) Large screen, high precision machine computer system.
4) Optimized electric system.
5) Balanced type of double whole transfer oil cylinder.
6) Large torque oil motor.
7) High abrasion-resistant alloy sliding block.
8) The integrate type of detachable oil tank, magnetic filter and bypass strainer.
9) Reasonable and high efficient lubrication system.
10) Modularized energy conservation, high response oil-way system.


TECHNICAL PARAMETERS

PRODUCT NAME

Injection Molding Machines

SPECIFICATION

HHK170

HHK230

HHK270

HHK330

HHK380

INJECTION UNIT

A

B

A

B

A

B

A

B

A

B

Screw Diameter(MM)

42

45

45

48

50

53

50

53

60

65

Theoretical capacity(cm³)

270

352

270

352

481

540

481

540

820

963

Injection  Weight(G)

245

321

245

321

438

492

438

492

746

876

Injection Rate(G/S)

410

471

530

603

585

657

585

657

500

586

Injection Pressure(MPA)

172

150

150

132

170

151

170

151

219

186

Screw Speed(RPM)

350

350

280

300

300

CLAMPING UNIT

Clamp Tonnage(KN)

1700

2300

2700

3300

3800

Toggle Stroke(MM)

430

490

545

605

710

Space Between Tie Bars(MM)

470*470

532*532

580*580

680*680

720*720

Max.Mold Height(MM)

510

550

580

670

720

Min.Mold Height(MM)

170

200

210

250

250

Ejector Stroke(MM)

45

140

145

160

160

Ejector Tonnage(KN)

70

70

70

70

125

Number Of Ejector Rods(PC)

5

9

9

13

13

OTHER

Max.Pump Pressure(MPA)

16

16

16

16

16

Pump Motor Power(KW)

22+22

30+22

30+30

30+37

37+37

Hearter Power(KW)

14.5

14.5

21

21

28

Machine Dimension(M)

5.6*1.6*2.0

5.8*1.8*2.0

6.3*1.8*2.0

6.8*1.95*2.1

7.6*2.1*2.2

Machine Weight(T)

7.8

8.4

10

12

17

Oil Tank Capacity(L)

450

505

560

630

750

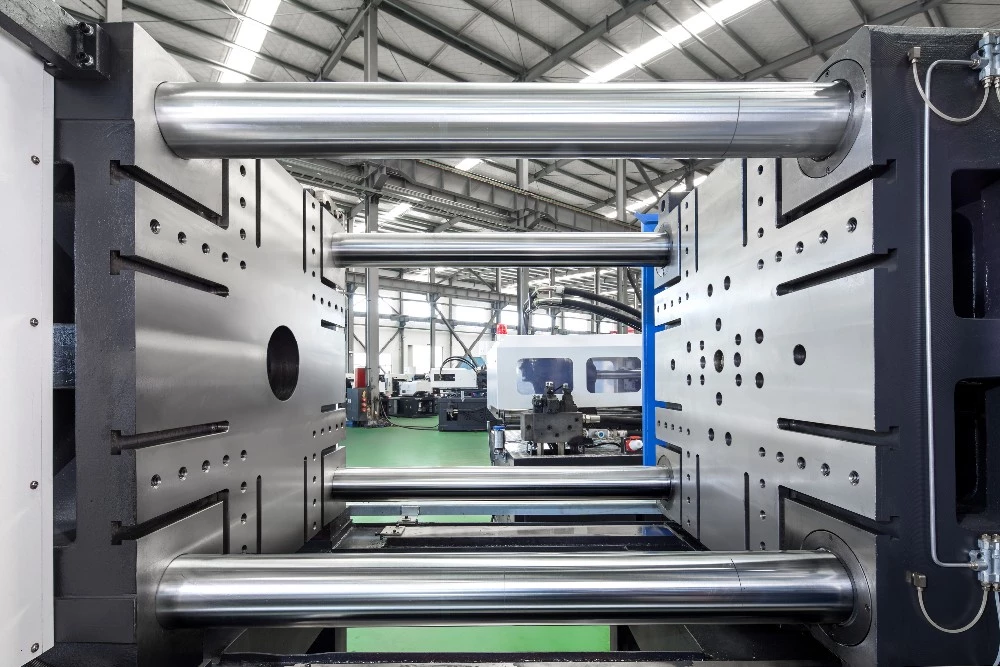

PRODUCTS DISPLAY

Injection Molding Machines

Injection Molding Machinery

injection moulding machinery supplier


WHY CHOOSE US

We have own machine design department, for new machine design, and each machine component are process in our own workshop, to make sure strictly quality control. inspection team would check every machine before shipment, keep every machine in good condition
