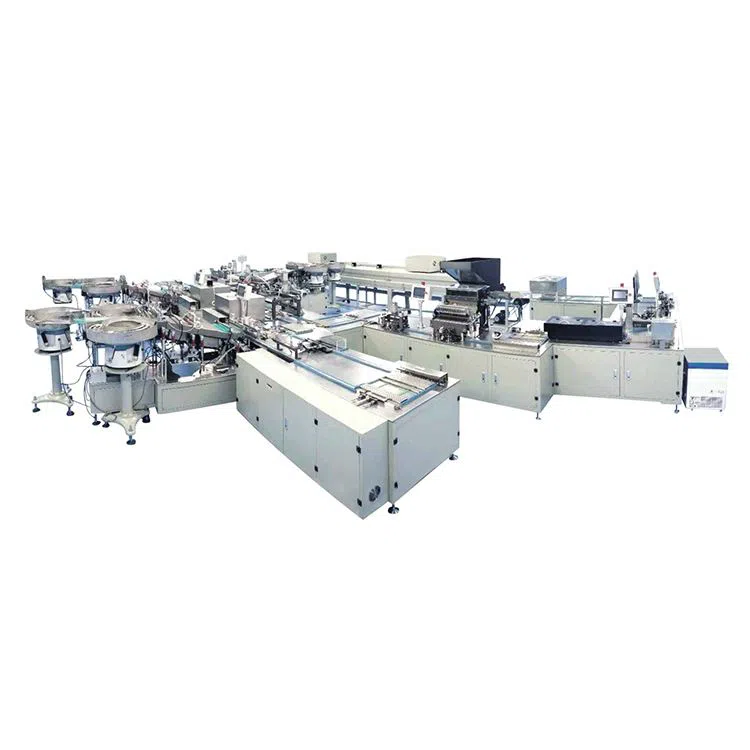

Safety Needle Assembly Machine
Equipment parameters
Output | 18000-20000 pcs per hour |
Gas consumption | 70 cubic per hour |
Whole machine power | 18KW |
Rated pressure | >0.6 MPa |
Area covered | 12m*7m |
Equipment weight | About 6 tons |
Operators | 4-5 persons |
Equipment Configuration
The device adopts the Keyence programming control system, and the panel is easy to operatewith the touch screen.
The servo motor coating mechanism is smooth and uniform. The detection system adopts the
Keyence CCD image from Japan, and the pneumatic configuration adopts the imported components.
Technological process
Needle hub loading→needle hub pressing→ needle cannula loading→ needle hub gluing→twirl the needle 1→twirl the needle 2→oven drying→jam detecting→needle burr detecting by CCD→silicification→unqualified product rejecting→Protective cap loading→cap pressing→finished product Discharging
