Automatic Hypodermic

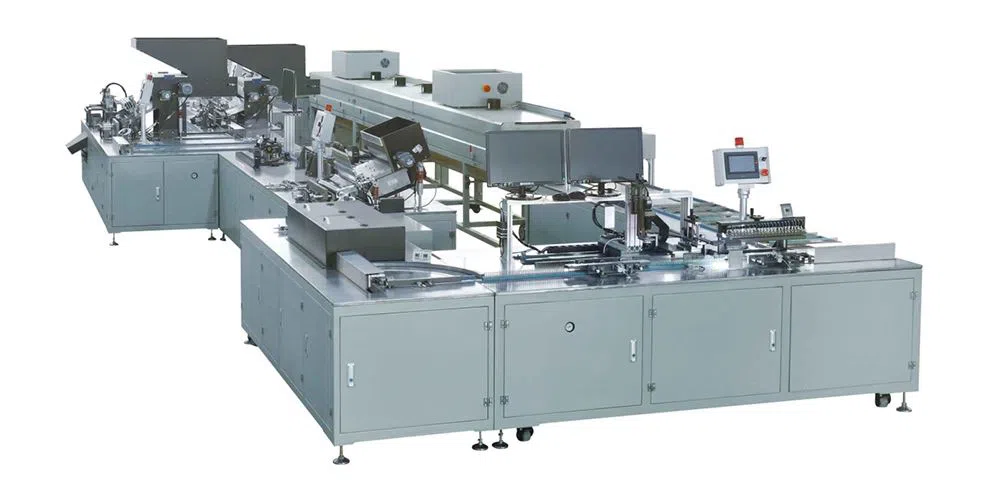

Automatic Hypodermic Needle Assembly Machine
Equipment parameters
Output | 68000 pcs per hour |
Gas consumption | 60 cubic per hour |
Whole machine power | 18KW |
Rated pressure | >0.6 MPa |
Area covered | 11m*3.5m |
Equipment weight | About 7 tons |
Operators | 2 persons |
Equipment Configuration
The device adopts the Keyence programming control system,and the panel is easy to operate with the touch screen.
The servo motor coating mechanism is smooth and uniform.The detection system adopts the Keyence CCD image from Japan, and the pneumatic configuration adopts the imported components.
Technological process
Needle hub loading→needle hub pressing→needle tube assembling→ hub gluing with needle→oven drying→jam detecting-needle burr detecting by CCD→ silicification→unqualified product rejecting→Protective cap loading → cap pressing→ finished product Discharging
