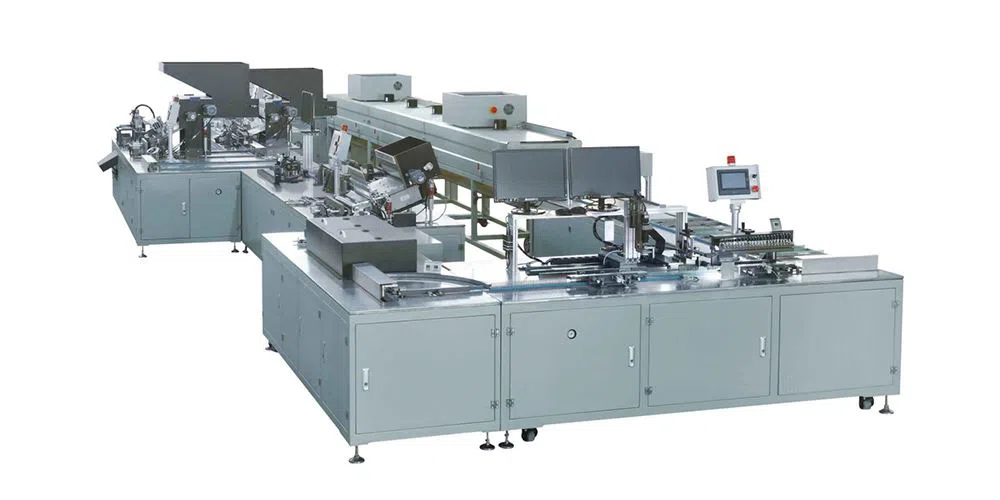

lblood Collection Needle Assembly Machine
Automatic Equipment For Aseptic Medical Devices
Equipment parameters
Output | 28000 pcs per hour |
Gas consumption | 60 cubic per hour |
whole machine power | 18KW |
Rated pressure | >0.6 MPa |
Area covered | 11m*3.5m |
Equipment weight | About 7 tons |
Operators | 2 persons |
Equipment Configuration
The device adopts the Keyence programming control system, and the panel is easy to operatewith the touch screen.The servo motor coating mechanism is smooth and uniform.
The detection system adopts the Keyence CCD image from Japan,and the pneumatic configuration adopts the imported components.
Technological process
Needle hub loading →assemble needle cannula→gluing→oven drying→Jam detecting
→needle burr detecting by cCD→silicification→unqualified product reject→rubber cover loading→press rubber cover→Discharging
