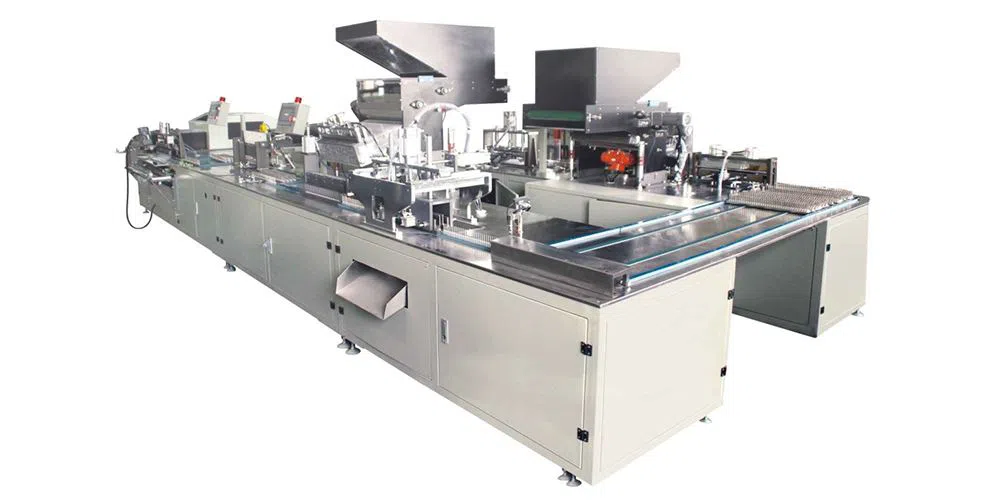

Insulin cartridge assembly machine
Medical Device Automation Equipment Expert
Equipment parameters
Production capacity | 18000 pcs per hour |
Equipment power | 6KW |
Gas consumption | 50 cubic per hour |
Rated pressure | > 0.6 Mpa |
Equipment weight | About 6 tons |
Equipment size | 7m*2.5m |
Operators | 2-3 persons |
Equipment Configuration
The device adopts the Keyence programming control system,and the panel is easy to operate with the touch screen.
The servo motor coating mechanism is smooth and uniform.
The detection system adopts the Keyence CCD image from Japan,and the pneumatic configuration adopts the imported components.
Technological process
Barrel loading →needle assembling→ barrel gluing with needle→oven drying→ jam detecting
→needle burr detecting by CCD→silicification→ unqualified product rejecting→Protective cap loading→cap pressing→finished product Discharging
