PRODUCTS DETAILS
Zhejiang Nuojie Medical Instrument Technology co.,ltd plastic injection molding machine with a faster injection speed, Our factory's plastic injection molding machines will satisfy the demands for high productivity.The plastic injection molding machines feature a new structural design featuring high speed injection characteristic.Exceptional performance in every detail. Technological leadership quality priority. User-friendly control .The latest control is easy to learn and operate.
TECHNICAL PARAMETERS
PRODUCT NAME | Plastic Injection Molding Machine | |||||||||

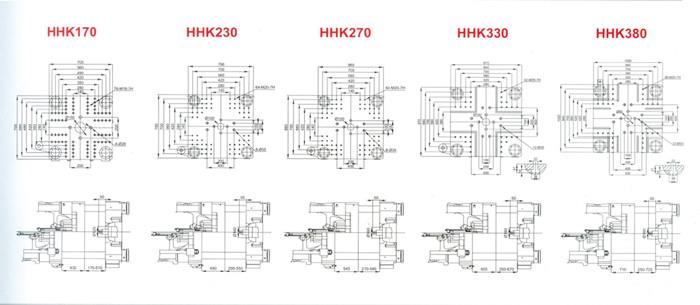

SPECIFICATION | HHK170 | HHK230 | HHK270 | HHK330 | HHK380 | |||||
INJECTION UNIT | A | B | A | B | A | B | A | B | A | B |
Screw Diameter(MM) | 42 | 45 | 45 | 48 | 50 | 53 | 50 | 53 | 60 | 65 |
Theoretical capacity(cm³) | 270 | 352 | 270 | 352 | 481 | 540 | 481 | 540 | 820 | 963 |
Injection Weight(G) | 245 | 321 | 245 | 321 | 438 | 492 | 438 | 492 | 746 | 876 |
Injection Rate(G/S) | 410 | 471 | 530 | 603 | 585 | 657 | 585 | 657 | 500 | 586 |
Injection Pressure(MPA) | 172 | 150 | 150 | 132 | 170 | 151 | 170 | 151 | 219 | 186 |
Screw Speed(RPM) | 350 | 350 | 280 | 300 | 300 | |||||
CLAMPING UNIT | ||||||||||
Clamp Tonnage(KN) | 1700 | 2300 | 2700 | 3300 | 3800 | |||||
Toggle Stroke(MM) | 430 | 490 | 545 | 605 | 710 | |||||
Space Between Tie Bars(MM) | 470*470 | 532*532 | 580*580 | 680*680 | 720*720 | |||||
Max.Mold Height(MM) | 510 | 550 | 580 | 670 | 720 | |||||
Min.Mold Height(MM) | 170 | 200 | 210 | 250 | 250 | |||||
Ejector Stroke(MM) | 45 | 140 | 145 | 160 | 160 | |||||
Ejector Tonnage(KN) | 70 | 70 | 70 | 70 | 125 | |||||
Number Of Ejector Rods(PC) | 5 | 9 | 9 | 13 | 13 | |||||
OTHER | ||||||||||
Max.Pump Pressure(MPA) | 16 | 16 | 16 | 16 | 16 | |||||
Pump Motor Power(KW) | 22+22 | 30+22 | 30+30 | 30+37 | 37+37 | |||||
Hearter Power(KW) | 14.5 | 14.5 | 21 | 21 | 28 | |||||
Machine Dimension(M) | 5.6*1.6*2.0 | 5.8*1.8*2.0 | 6.3*1.8*2.0 | 6.8*1.95*2.1 | 7.6*2.1*2.2 | |||||
Machine Weight(T) | 7.8 | 8.4 | 10 | 12 | 17 | |||||
Oil Tank Capacity(L) | 450 | 505 | 560 | 630 | 750 | |||||

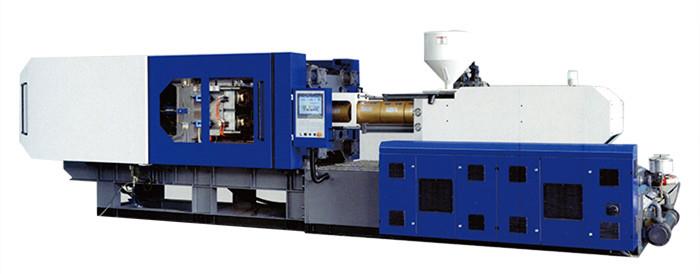

PRODUCTS DISPLAY
Our Services
1, The guarantee of our machines is at least two years, also we will send 3% of sales value as spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.
2, We can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use.
